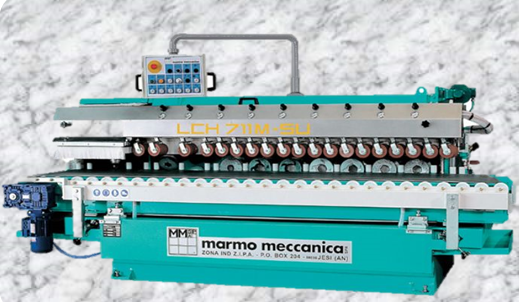

Marmo Meccanica - LCH 711M

Straight horizontal polishing machine for flat edges from 1 to 6 cm. The system of transport guarantees very good stability and reduces the breaking of slabs. The LCH machine is a polishing unit for straight flat or squared 1 to 6 cm thick marble or granite edges.

The working mode is on a continuous process basis. This means that all the pieces are loaded one after the other on the machine and move past a series of mandrels so that they come out completely finished. Apart from the mandrels for polishing and smoothing the edge, the LCH machine is also equipped with mandrels for chamfering both sides of the edge. The machine can also be equipped with additional mandrels for dripstone cutting, thickness gauging and shaping with suitable diamond tools.

Motorised pressing bar. The system of transport guarantees very good stability and reduces the breaking of slabs.

ADVANTAGES OF THE LCH 711M:
• Fully automatic straight edge polishing
• Production speeds of 80 to 150 l/f per hour
• No height restrictions for material being processed
• 7 polishing heads enables processing in one pass
• Requires small foot print for set up and operation (Dimensions are 14’x6’)
• The LCH 711 requires no human intervention to over see the operation and allows the operator to do other jobs
• Cost of lineal feet of finished edge amortized over 5 years is under .30 per foot
• 2 motors allow for V-grooving material for mitered edge

SPECIFICATIONS OF THE LCH 711M:
• Number of Polishing Motors: 7
• Number of Beveling Motors: 2
• Total Water Consumption: 12 to 15 gallons/minute
• Total Power Requirement: 230v/3phase/60amps
• Total Dimension of Machine: 10ft x 4ft x 4ft
• Total Weight of Machine: 3,000lbs
• Extension Tables: Standard 3ft in length
• Working Speed: 150 Lineal feet per Hour
• Maximum Abrasive Size: 6" or 150mm
• Minimum material size: 3 inches x 16 inches (shorter pieces possible like 12" x 12" tile, contact us for details)
• Maximum material size: NO MAXIMUM

If you have any specific questions about this product or would like a quote, please contact Paolo on e-mail  paolo@intelpowerinc.ca or call (647) 212 0056 at any time.
